Westmead Bridge Detour Plan

Westmead, NSW

SHT 01

Drawing package

Stage 2 - for review and comment
Drawing previewStage 2 detour plan
01 / 01

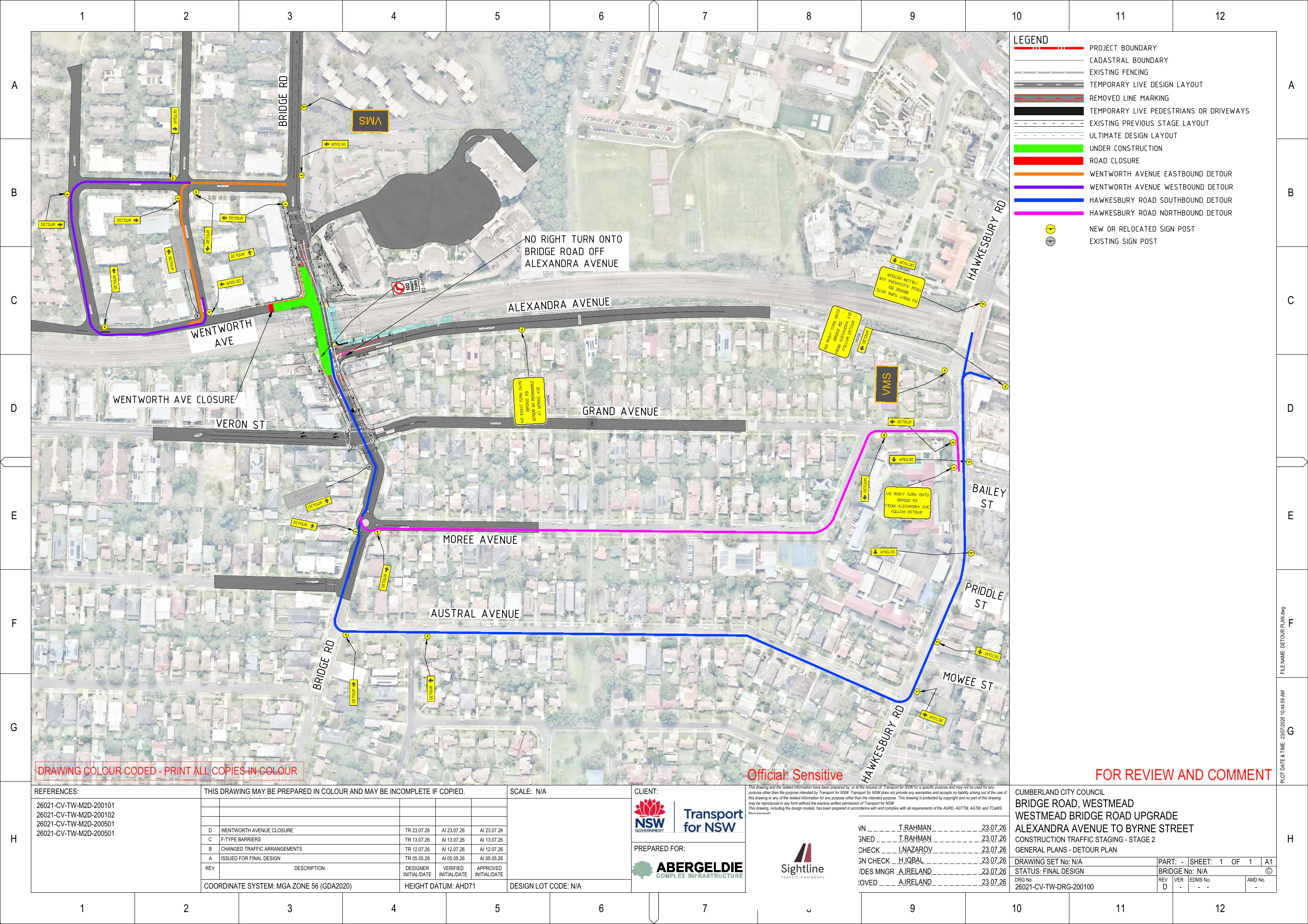

Westmead Bridge Stage 2 detour plan showing closure points, signed routes and local-road connectionsOpen full drawing ↗
SHT 02

Project register

Selected work
LocationWestmead, NSW
Drawing statusStage 2 - for review and comment
Deliverables shownStage 2 detour plan
EVID

Related project evidence

Authorised project material
Overall Hill Road traffic staging plan showing the project corridor, intersections and temporary alignments
Hill Road, NSW

Hill Rd Traffic Staging

An overall corridor plan coordinating staged traffic arrangements, temporary alignments, work zones and tie-ins across Hill Road and its connecting intersections.

View project →
Sample traffic guidance scheme for a crane lift with work zones, controllers and temporary traffic signs
Various locations

Sample TGS

A six-sheet sample selection showing how temporary traffic guidance changes with site geometry, road classification, pedestrian access and plant movements.

View project →
Hill Road traffic cross-section sheet showing lanes, barriers, deflection zones and construction areas
Hill Road, NSW

Traffic Cross Section

Typical Hill Road sections setting out live traffic lanes, shoulder widths, temporary barriers, deflection zones, pedestrian paths and construction areas at three chainages.

View project →
