Hill Rd Traffic Staging

Hill Road, NSW

SHT 01

Drawing package

Overall plan
Drawing previewOverall traffic staging plan
01 / 01

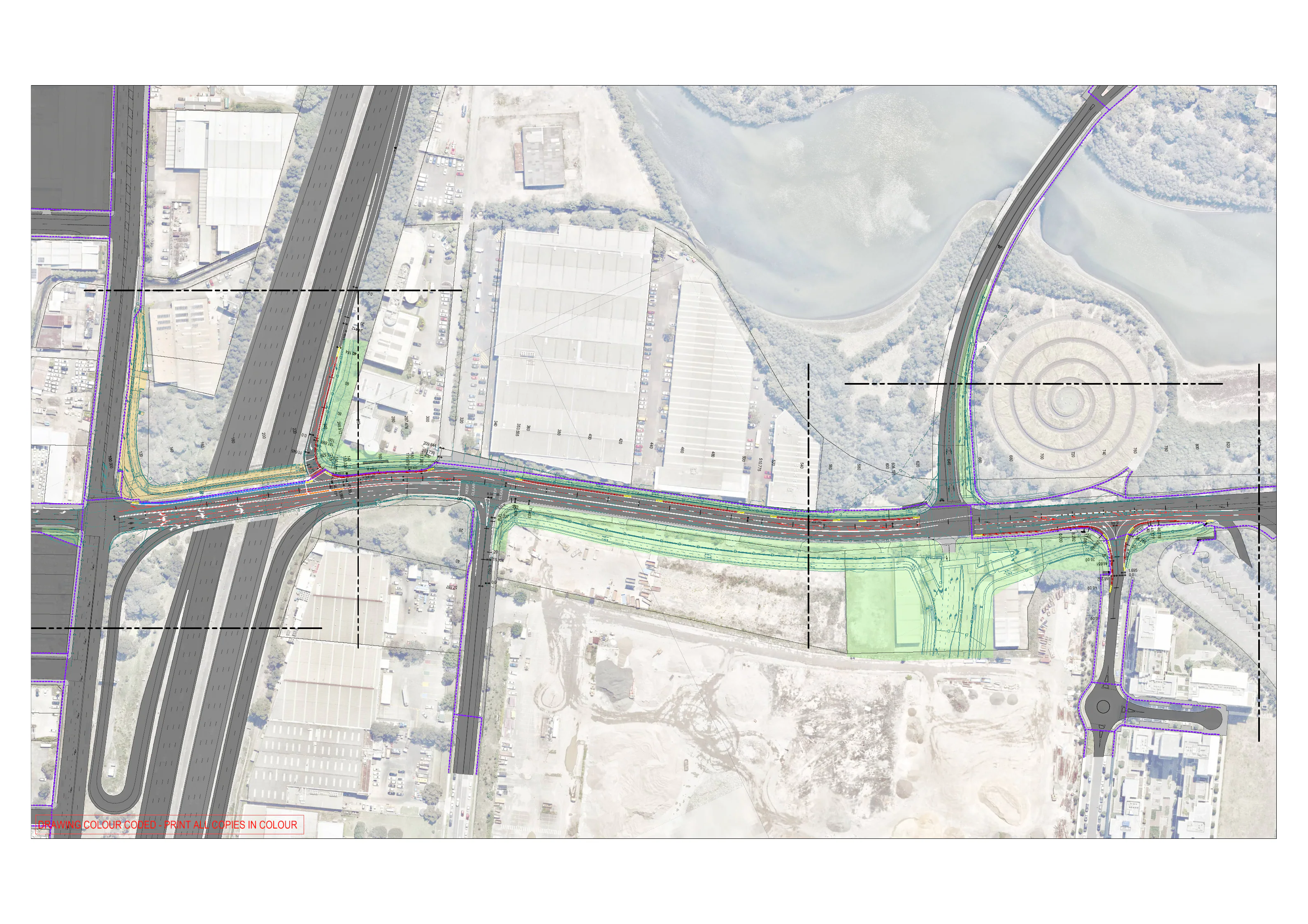

Overall Hill Road traffic staging plan showing the project corridor, intersections and temporary alignmentsOpen full drawing ↗
SHT 02

Project register

Selected work
LocationHill Road, NSW
Drawing statusOverall plan
Deliverables shownOverall traffic staging plan
EVID

Related project evidence

Authorised project material
Westmead Bridge Stage 2 detour plan showing closure points, signed routes and local-road connections
Westmead, NSW

Westmead Bridge Detour Plan

A Stage 2 detour drawing for the Westmead Bridge Road upgrade, routing traffic around the Wentworth Avenue closure between Alexandra Avenue and Byrne Street.

View project →
Sample traffic guidance scheme for a crane lift with work zones, controllers and temporary traffic signs
Various locations

Sample TGS

A six-sheet sample selection showing how temporary traffic guidance changes with site geometry, road classification, pedestrian access and plant movements.

View project →
Hill Road traffic cross-section sheet showing lanes, barriers, deflection zones and construction areas
Hill Road, NSW

Traffic Cross Section

Typical Hill Road sections setting out live traffic lanes, shoulder widths, temporary barriers, deflection zones, pedestrian paths and construction areas at three chainages.

View project →
