A selection of traffic staging, detour, traffic guidance and barrier drawings — each paired with the sector, service division and a concise account of what the package shows.
Selected work
5 authorised drawing sets
PRJ 01Hill Rd Traffic Staging

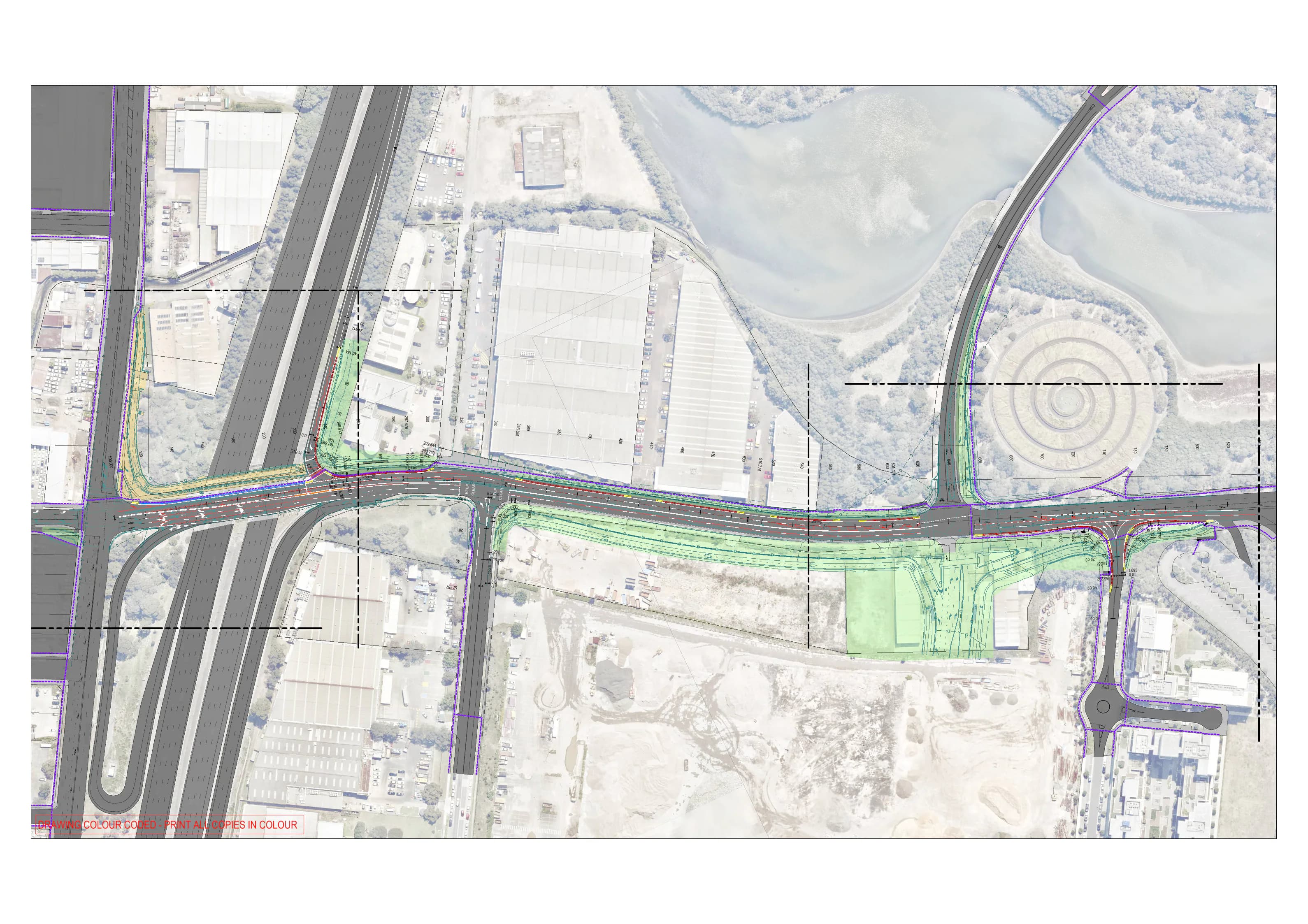

An overall corridor plan coordinating staged traffic arrangements, temporary alignments, work zones and tie-ins across Hill Road and its connecting intersections.
View project drawings →
PRJ 02Westmead Bridge Detour Plan

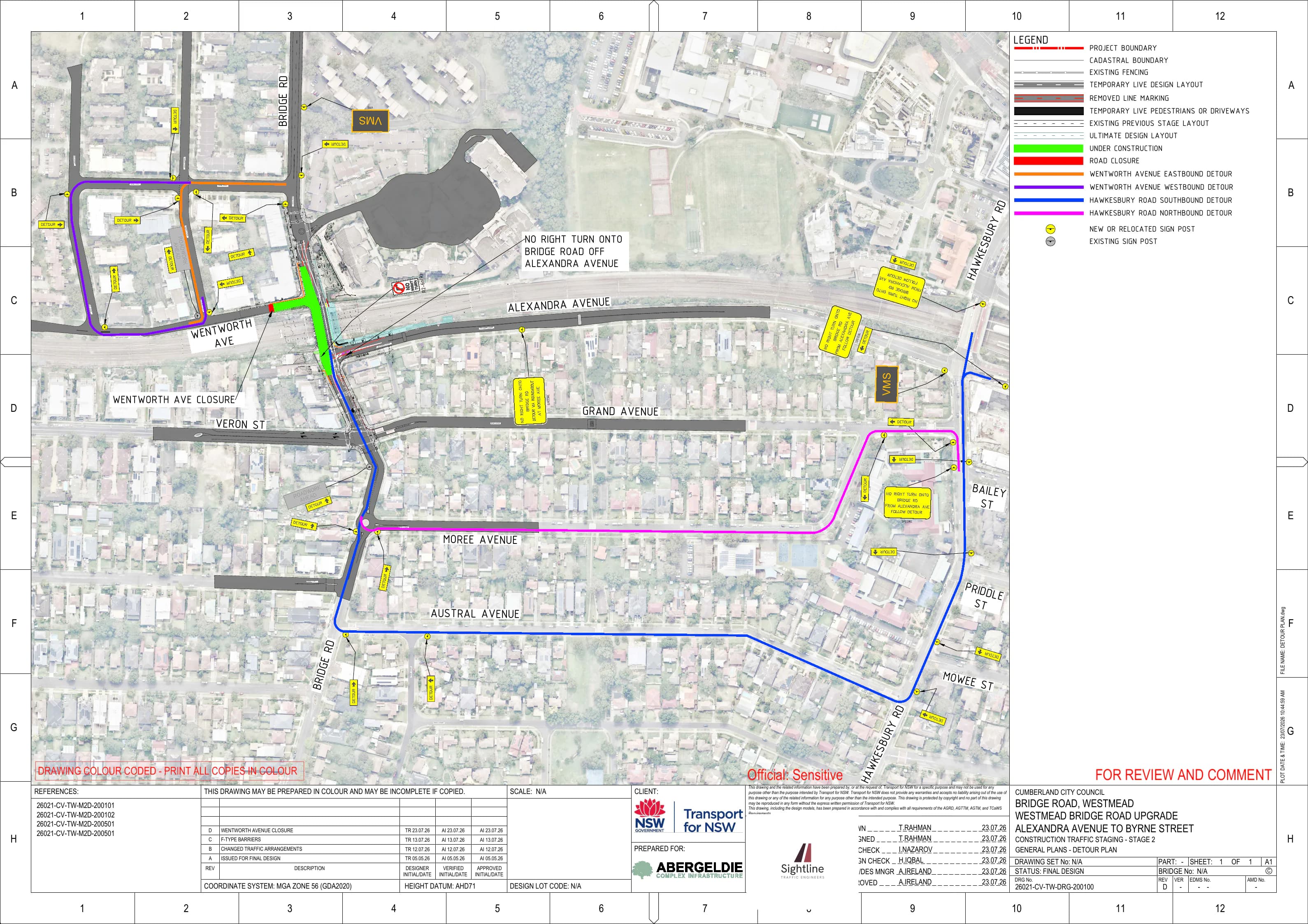

A Stage 2 detour drawing for the Westmead Bridge Road upgrade, routing traffic around the Wentworth Avenue closure between Alexandra Avenue and Byrne Street.
View project drawings →
PRJ 036 sheetsSample TGS

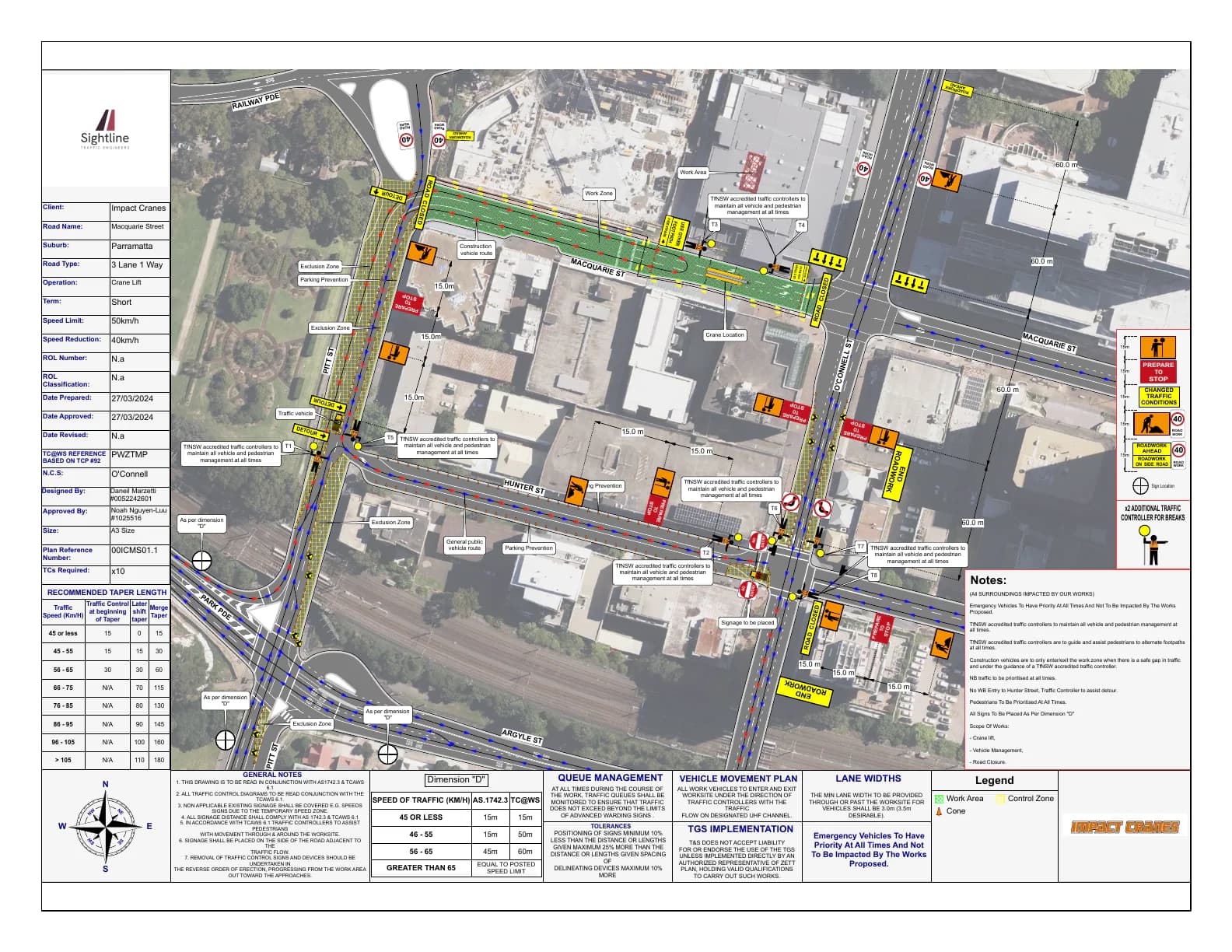

A six-sheet sample selection showing how temporary traffic guidance changes with site geometry, road classification, pedestrian access and plant movements.
View project drawings →
PRJ 04Traffic Cross Section

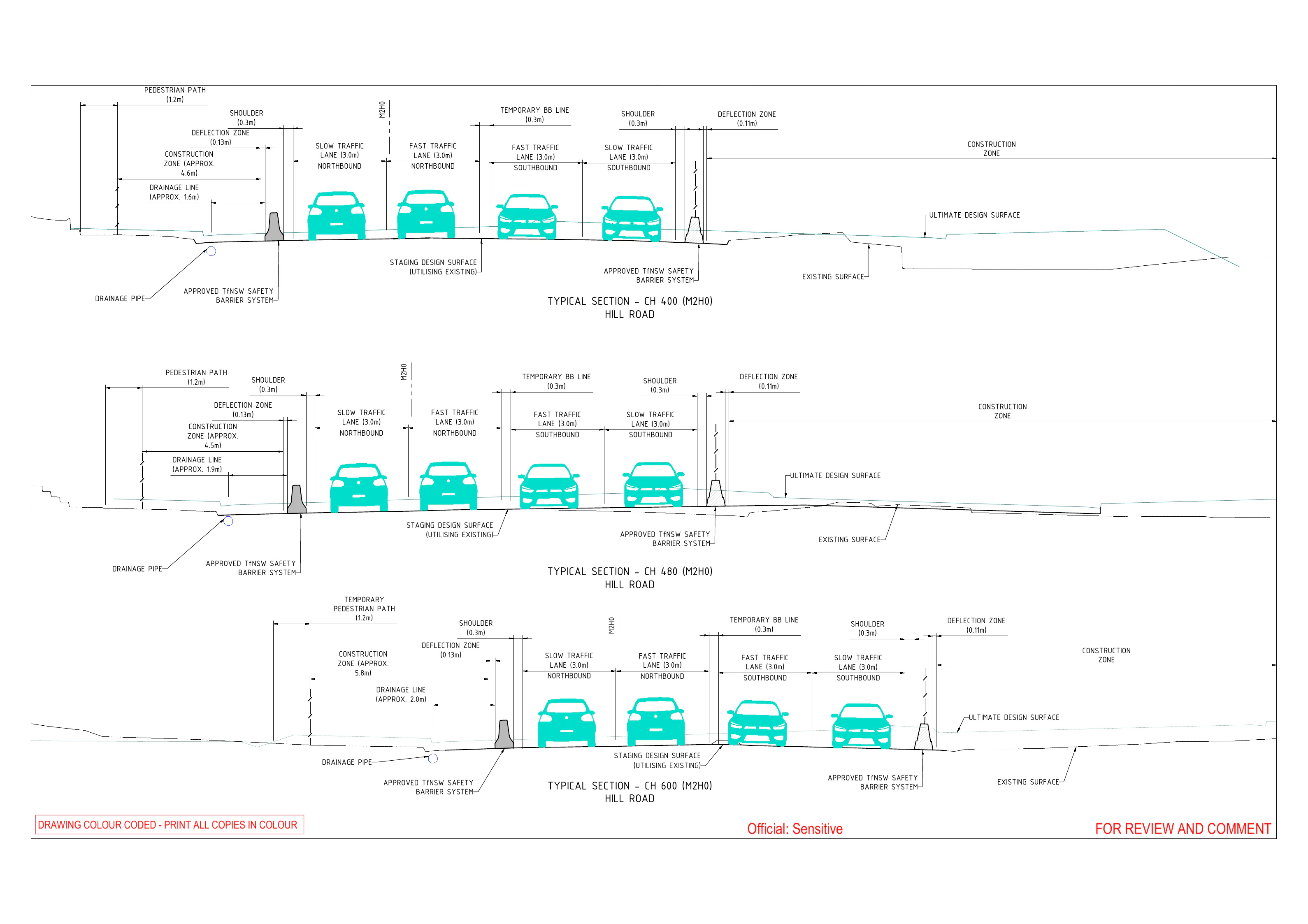

Typical Hill Road sections setting out live traffic lanes, shoulder widths, temporary barriers, deflection zones, pedestrian paths and construction areas at three chainages.
View project drawings →
PRJ 056 sheetsMain Road, Heddon Greta Traffic Staging

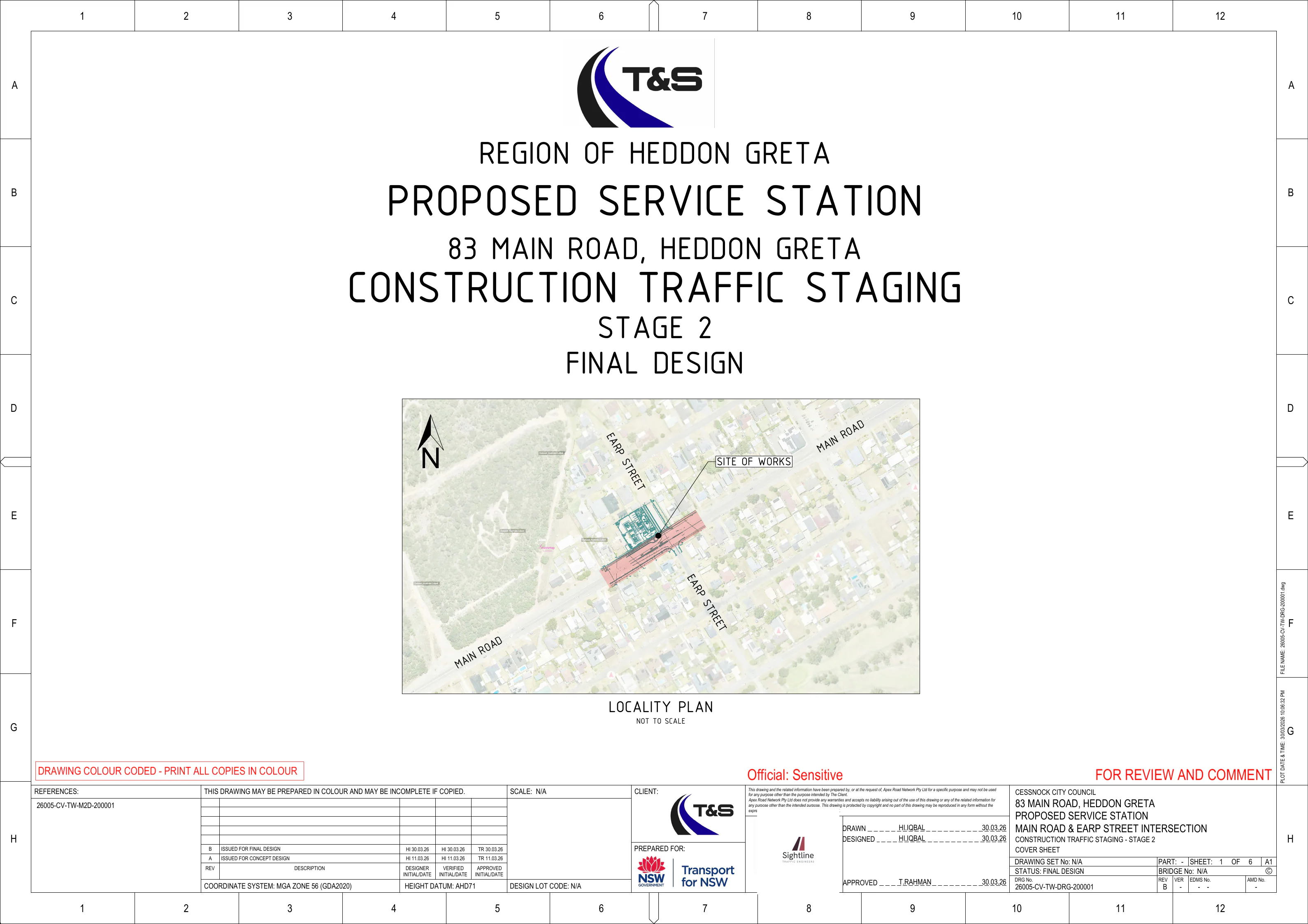

Stage 2 construction traffic staging for the proposed service station at 83 Main Road, shown through the selected cover, index, notes, legend, cross-section and general-plan sheets.
